Description

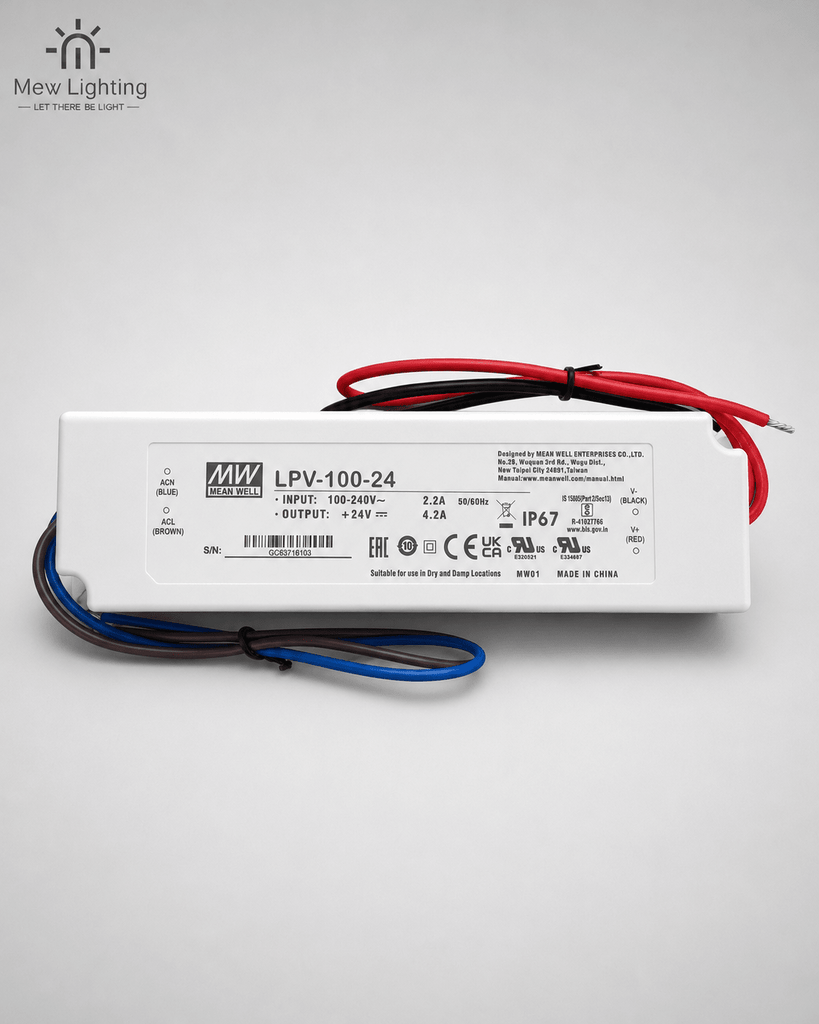

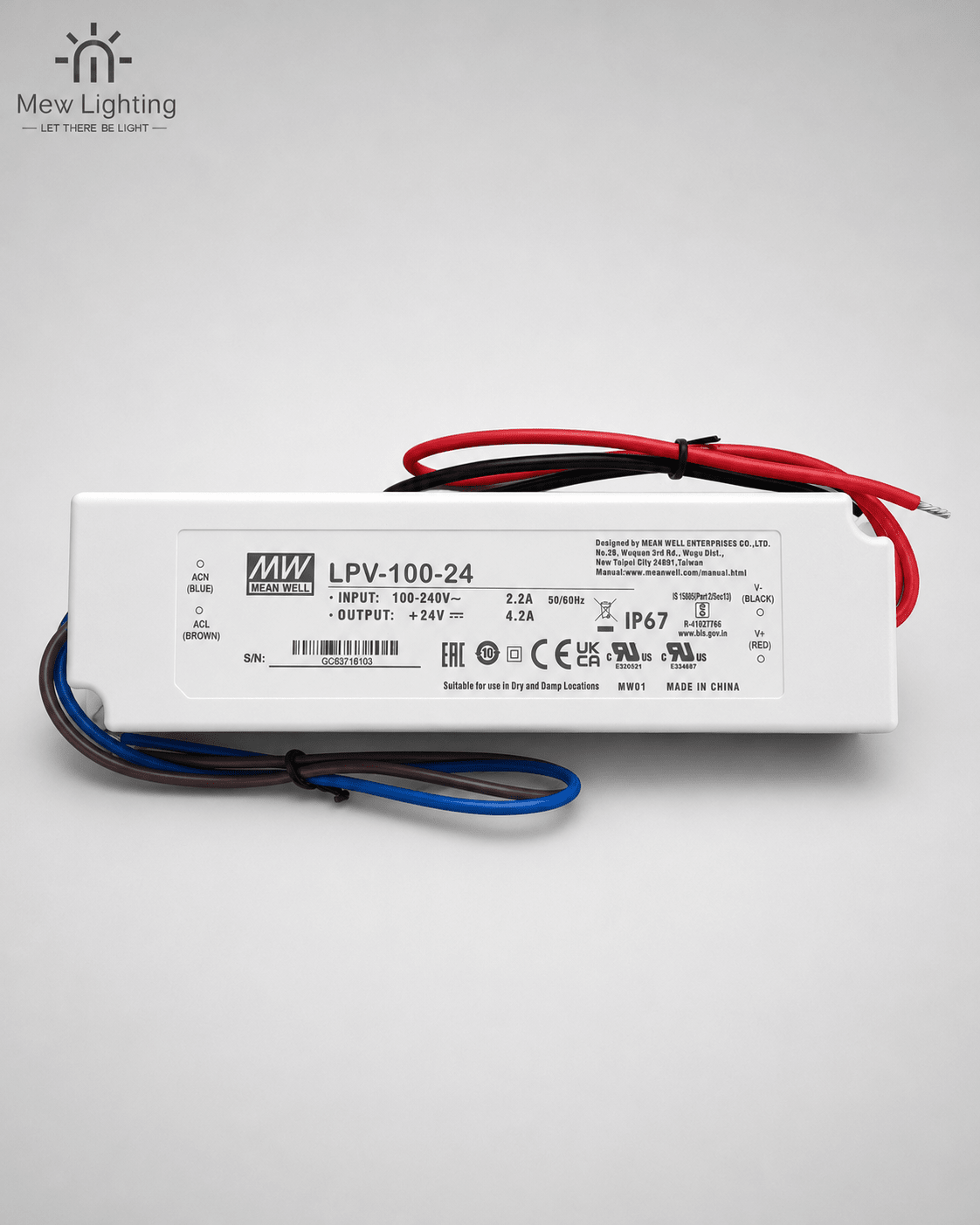

The MEAN WELL LPV-100-24 is a reliable constant voltage LED driver designed for 24V DC LED lighting applications. It provides a stable 24V DC output and is suitable for powering compatible LED strip lights, cabinet lighting, stair lighting, linear lights, display lighting, and other low-voltage LED systems.
With an IP67 rated plastic enclosure, this driver offers excellent protection against dust and moisture, making it suitable for dry and damp locations when installed correctly. Its wide input voltage range and Class II double-insulated design make it a dependable choice for residential and commercial LED lighting projects.
Specification
| Item | Specification |
|---|---|
| Brand | MEAN WELL |
| Model | LPV-100-24 |
| Product Type | LED Driver / Constant Voltage Power Supply |
| Input Voltage | 100–240V AC |
| Input Current | 2.2A |
| Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 4.2A |
| Rated Power | 100W |
| IP Rating | IP67 |
| Protection Class | Class II / Double Insulated |
| Input Wiring | Brown = ACL / Live, Blue = ACN / Neutral |
| Output Wiring | Red = V+, Black = V- |
| Suitable Location | Dry and Damp Locations |
| Certifications | CE, UKCA, EAC, UL Recognised |
| Country of Manufacture | Made in China |
Dimensions & Weight
19mm × 49mm × 37mm
Mew~Warranty
At Mew Lighting all our lighting complies with NZ/AU standards (SDoC on request) and covered by a minimum 2-years warranty, if installed by a qualified electrician.
LED Light bulbs come with 6 months warranty.
LED Downlights come with 3- years warranty.
No warranty for incandescent, fliament and Halogen light bulbs.
Warranty period on all products starts from the date of purchase of the original product only, not when any product is installed or replaced.
Please retain proof of purchase and evidence of installation by a licensed electrician for any warranty enquiries.
The use of non-compatible dimmers on dimmable or non-dimmable light will damage your LED luminaire and will void the warranty.
Warranty will be void if there is any damage due to improper usage or modification to the luminaire.
