Description

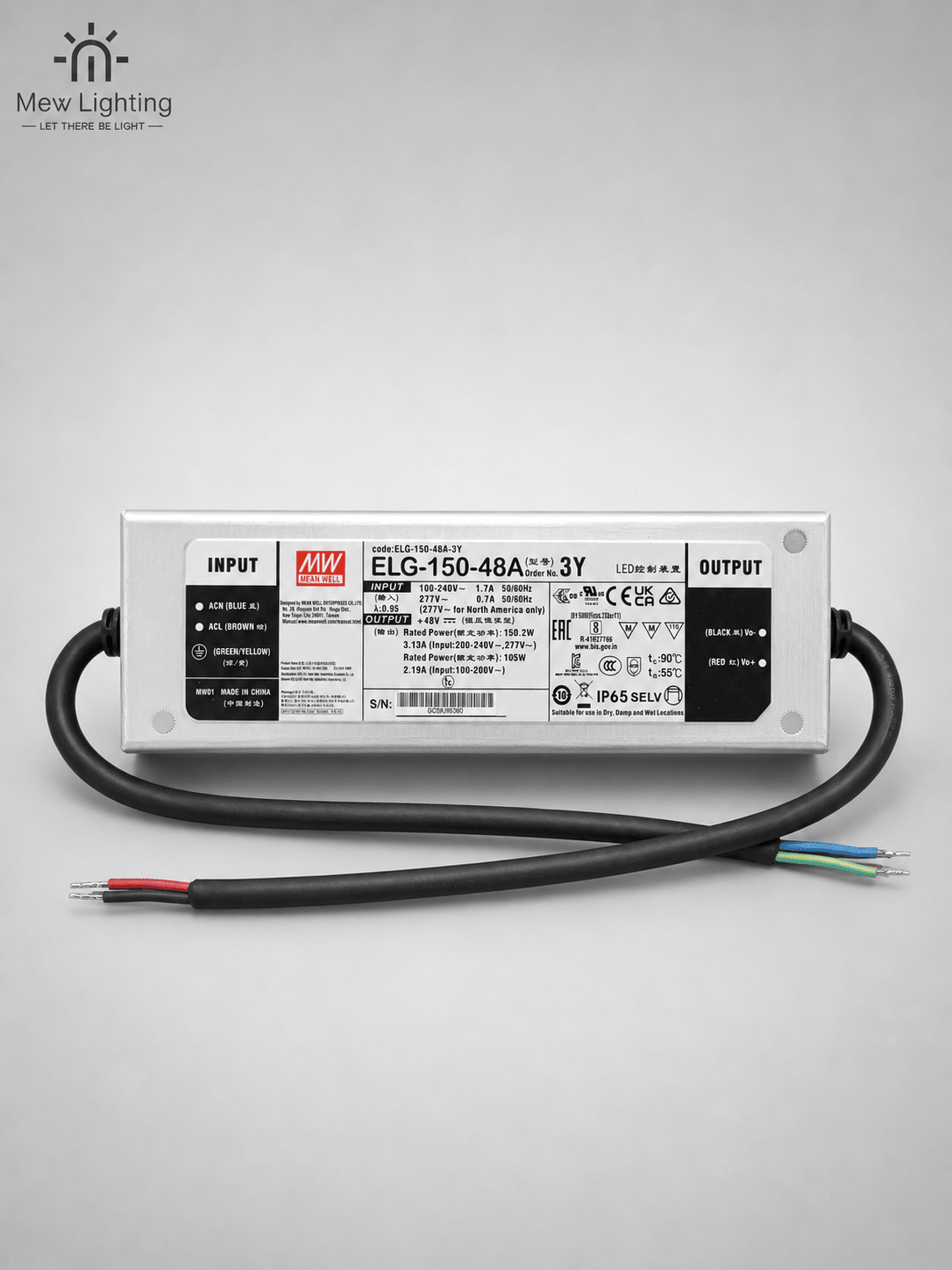

The MEAN WELL ELG-150-48A-3Y is a high-quality LED driver designed for 48V DC LED lighting applications. It provides a stable 48V DC output and is suitable for powering compatible LED strip lights, linear lights, stair lighting, architectural lighting, and other low-voltage LED systems.
With an IP65 rated metal enclosure, this driver offers reliable protection for indoor and suitable damp-location installations. It features a wide input voltage range and a robust Class 2 power supply design, making it a dependable choice for residential and commercial lighting projects.
Specification
| Item | Specification |
|---|---|
| Brand | MEAN WELL |
| Model | ELG-150-48A-3Y |
| Product Type | LED Driver / Constant Voltage Power Supply |
| Input Voltage | 100–240V AC / 277V AC |
| Input Current | 1.7A @ 100–240V AC / 0.7A @ 277V AC |
| Frequency | 50/60Hz |
| Output Voltage | 48V DC |
| Rated Power | 150W @ 200–240V AC / 277V AC input |
| Rated Output Current | 3.13A @ 200–240V AC / 277V AC input |
| Rated Power at Lower Input | 105W @ 100–200V AC input |
| Output Current at Lower Input | 2.19A @ 100–200V AC input |
| IP Rating | IP65 |
| Protection Type | SELV / Class 2 Power Supply |
| Input Wiring | Blue = ACN / Neutral, Brown = ACL / Live, Green/Yellow = Earth |
| Output Wiring | Black = Vo-, Red = Vo+ |
| Suitable Location | Dry、Damp and Wet Locations |
| Case Temperature | tc: 90°C |
| Ambient Temperature | ta: 55°C |
| Country of Manufacture | Made in China |
Dimensions & Weight
220mm × 63mm × 36mm
Mew~Warranty
At Mew Lighting all our lighting complies with NZ/AU standards (SDoC on request) and covered by a minimum 2-years warranty, if installed by a qualified electrician.
LED Light bulbs come with 6 months warranty.
LED Downlights come with 3- years warranty.
No warranty for incandescent, fliament and Halogen light bulbs.
Warranty period on all products starts from the date of purchase of the original product only, not when any product is installed or replaced.
Please retain proof of purchase and evidence of installation by a licensed electrician for any warranty enquiries.
The use of non-compatible dimmers on dimmable or non-dimmable light will damage your LED luminaire and will void the warranty.
Warranty will be void if there is any damage due to improper usage or modification to the luminaire.
